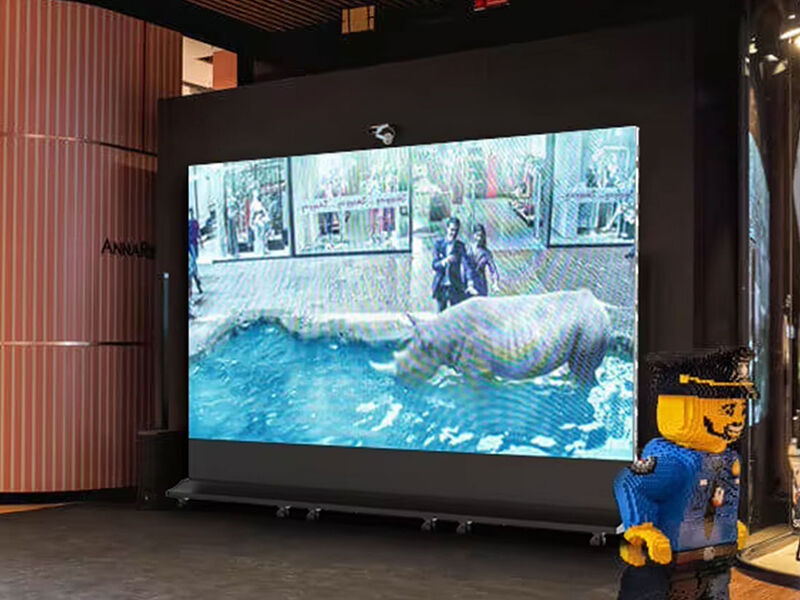

How Does an LED Display Work?

The working principle of an LED display varies depending on the display technology used. Some LED displays rely on LCD panels with LED backlighting, while others generate images directly through self-emitting LEDs. We will explore these technologies in more detail later. First, let's look at the basic operating principle behind a typical LED display.

An LED display consists of thousands—or even millions—of tiny red, green, and blue (RGB) LED chips. Together, one red LED, one green LED, and one blue LED form a single pixel, which serves as the smallest image element on the screen.

Each individual red, green, or blue LED is known as a sub-pixel. By combining millions of these sub-pixels across the display surface, the screen can create highly detailed images, videos, and graphics.

The process works through color mixing. The control system adjusts the brightness of each red, green, and blue sub-pixel independently. By increasing or decreasing the intensity of these three primary colors, the display can generate millions of different color combinations.

For example, to produce magenta, the display illuminates the red and blue sub-pixels while reducing or turning off the green sub-pixel. As these colors blend together, the viewer perceives the color magenta.

The same principle applies to every color shown on the screen. By precisely controlling the brightness of each RGB sub-pixel, an LED display can reproduce a full spectrum of colors with exceptional accuracy and vibrancy.

This rapid and continuous adjustment of millions of pixels allows LED displays to deliver smooth video playback, vivid images, dynamic animations, and high-quality visual content in real time.
